职责链模式

目的

建立一个对象链，按顺序处理请求。如果一个对象不能处理请求，就将调用委托给职责链中的下一个对象，以此类推。

UML 类图

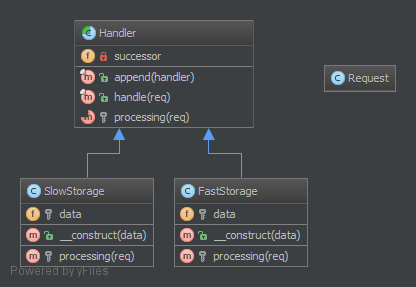

职责链模式类图

代码

Handler.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
<?php declare(strict_types = 1);

namespace DesignPatterns\Behavioral\ChainOfResponsibility;

use Psr\Http\Message\RequestInterface;

abstract class Handler
{
    private ?Handler $successor = null;

    public function __construct(Handler $handler = null)
    {
        $this->successor = $handler;
    }

    /**
     * This approach by using a template method pattern ensures you that
     * each subclass will not forget to call the successor
     */
    final public function handle(RequestInterface $request): ?string
    {
        $processed = $this->processing($request);

        if ($processed === null && $this->successor !== null) {
            // the request has not been processed by this handler => see the next
            $processed = $this->successor->handle($request);
        }

        return $processed;
    }

    abstract protected function processing(RequestInterface $request): ?string;
}

Responsible/FastStorage.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
<?php declare(strict_types = 1);

namespace DesignPatterns\Behavioral\ChainOfResponsibility\Responsible;

use DesignPatterns\Behavioral\ChainOfResponsibility\Handler;
use Psr\Http\Message\RequestInterface;

class HttpInMemoryCacheHandler extends Handler
{
    private array $data;

    public function __construct(array $data, ?Handler $successor = null)
    {
        parent::__construct($successor);

        $this->data = $data;
    }

    protected function processing(RequestInterface $request): ?string
    {
        $key = sprintf(
            '%s?%s',
            $request->getUri()->getPath(),
            $request->getUri()->getQuery()
        );

        if ($request->getMethod() == 'GET' && isset($this->data[$key])) {
            return $this->data[$key];
        }

        return null;
    }
}

Responsible/SlowStorage.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<?php declare(strict_types = 1);

namespace DesignPatterns\Behavioral\ChainOfResponsibility\Responsible;

use DesignPatterns\Behavioral\ChainOfResponsibility\Handler;
use Psr\Http\Message\RequestInterface;

class SlowDatabaseHandler extends Handler
{
    protected function processing(RequestInterface $request): ?string
    {
        // this is a mockup, in production code you would ask a slow (compared to in-memory) DB for the results

        return 'Hello World!';
    }
}

测试

Tests/ChainTest.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
<?php declare(strict_types = 1);

namespace DesignPatterns\Behavioral\ChainOfResponsibility\Tests;

use DesignPatterns\Behavioral\ChainOfResponsibility\Handler;
use DesignPatterns\Behavioral\ChainOfResponsibility\Responsible\HttpInMemoryCacheHandler;
use DesignPatterns\Behavioral\ChainOfResponsibility\Responsible\SlowDatabaseHandler;
use PHPUnit\Framework\TestCase;
use Psr\Http\Message\RequestInterface;
use Psr\Http\Message\UriInterface;

class ChainTest extends TestCase
{
    private Handler $chain;

    protected function setUp(): void
    {
        $this->chain = new HttpInMemoryCacheHandler(
            ['/foo/bar?index=1' => 'Hello In Memory!'],
            new SlowDatabaseHandler()
        );
    }

    public function testCanRequestKeyInFastStorage()
    {
        $uri = $this->createMock(UriInterface::class);
        $uri->method('getPath')->willReturn('/foo/bar');
        $uri->method('getQuery')->willReturn('index=1');

        $request = $this->createMock(RequestInterface::class);
        $request->method('getMethod')
            ->willReturn('GET');
        $request->method('getUri')->willReturn($uri);

        $this->assertSame('Hello In Memory!', $this->chain->handle($request));
    }

    public function testCanRequestKeyInSlowStorage()
    {
        $uri = $this->createMock(UriInterface::class);
        $uri->method('getPath')->willReturn('/foo/baz');
        $uri->method('getQuery')->willReturn('');

        $request = $this->createMock(RequestInterface::class);
        $request->method('getMethod')
            ->willReturn('GET');
        $request->method('getUri')->willReturn($uri);

        $this->assertSame('Hello World!', $this->chain->handle($request));
    }
}
