构造器模式

目的

构造器 Builder 是一个构建复杂对象元件的接口。

有时，如果构造器对它所构建的东西有更好的了解，这个接口也可以是一个拥有默认方法的抽象类（也就是适配器）。

如果你的对象有一个复杂的继承树，那么，从逻辑上讲，构造器也对应有一个复杂的继承树。

注：构造器通常提供一个流式接口，参见 PHPUnit 的模拟构造器为例。

使用场景

  • PHPUnit 模拟构造器

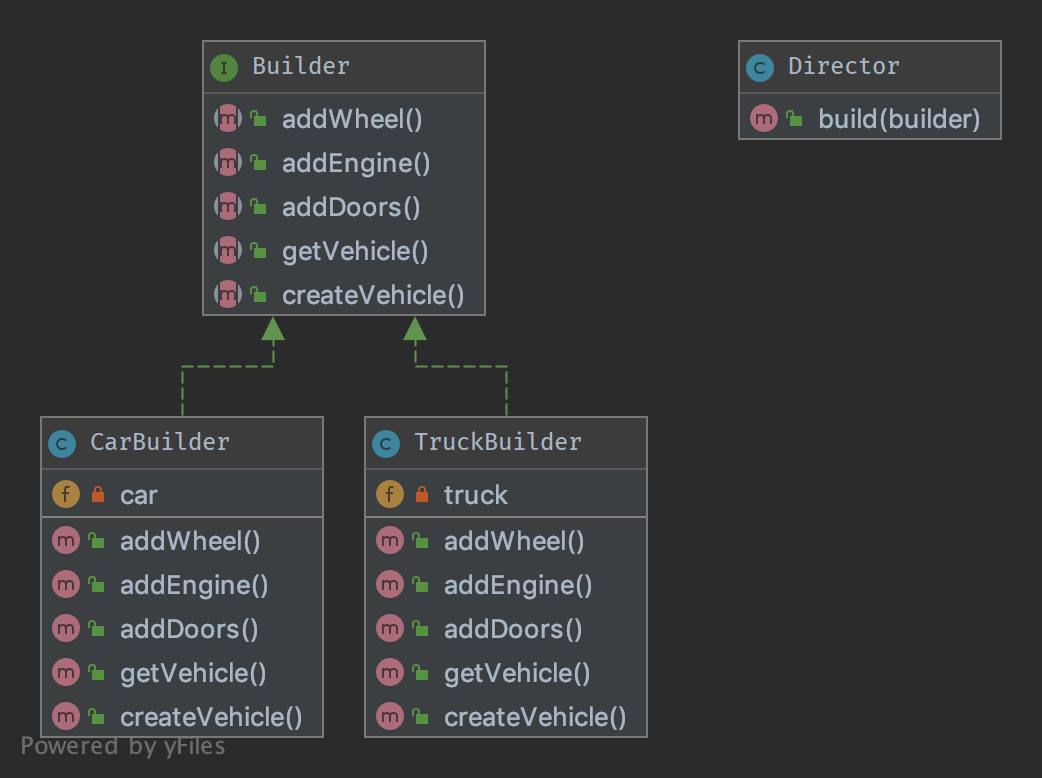

UML 类图

构造器模式类图

代码

Director.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder;

use DesignPatterns\Creational\Builder\Parts\Vehicle;

/**
 * Director is part of the builder pattern. It knows the interface of the builder
 * and builds a complex object with the help of the builder
 *
 * You can also inject many builders instead of one to build more complex objects
 */
class Director
{
    public function build(Builder $builder): Vehicle
    {
        $builder->createVehicle();
        $builder->addDoors();
        $builder->addEngine();
        $builder->addWheel();

        return $builder->getVehicle();
    }
}

Builder.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder;

use DesignPatterns\Creational\Builder\Parts\Vehicle;

interface Builder
{
    public function createVehicle();

    public function addWheel();

    public function addEngine();

    public function addDoors();

    public function getVehicle(): Vehicle;
}

TruckBuilder.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder;

use DesignPatterns\Creational\Builder\Parts\Door;
use DesignPatterns\Creational\Builder\Parts\Engine;
use DesignPatterns\Creational\Builder\Parts\Wheel;
use DesignPatterns\Creational\Builder\Parts\Truck;
use DesignPatterns\Creational\Builder\Parts\Vehicle;

class TruckBuilder implements Builder
{
    private Truck $truck;

    public function addDoors()
    {
        $this->truck->setPart('rightDoor', new Door());
        $this->truck->setPart('leftDoor', new Door());
    }

    public function addEngine()
    {
        $this->truck->setPart('truckEngine', new Engine());
    }

    public function addWheel()
    {
        $this->truck->setPart('wheel1', new Wheel());
        $this->truck->setPart('wheel2', new Wheel());
        $this->truck->setPart('wheel3', new Wheel());
        $this->truck->setPart('wheel4', new Wheel());
        $this->truck->setPart('wheel5', new Wheel());
        $this->truck->setPart('wheel6', new Wheel());
    }

    public function createVehicle()
    {
        $this->truck = new Truck();
    }

    public function getVehicle(): Vehicle
    {
        return $this->truck;
    }
}

CarBuilder.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder;

use DesignPatterns\Creational\Builder\Parts\Door;
use DesignPatterns\Creational\Builder\Parts\Engine;
use DesignPatterns\Creational\Builder\Parts\Wheel;
use DesignPatterns\Creational\Builder\Parts\Car;
use DesignPatterns\Creational\Builder\Parts\Vehicle;

class CarBuilder implements Builder
{
    private Car $car;

    public function addDoors()
    {
        $this->car->setPart('rightDoor', new Door());
        $this->car->setPart('leftDoor', new Door());
        $this->car->setPart('trunkLid', new Door());
    }

    public function addEngine()
    {
        $this->car->setPart('engine', new Engine());
    }

    public function addWheel()
    {
        $this->car->setPart('wheelLF', new Wheel());
        $this->car->setPart('wheelRF', new Wheel());
        $this->car->setPart('wheelLR', new Wheel());
        $this->car->setPart('wheelRR', new Wheel());
    }

    public function createVehicle()
    {
        $this->car = new Car();
    }

    public function getVehicle(): Vehicle
    {
        return $this->car;
    }
}

Parts/Vehicle.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder\Parts;

abstract class Vehicle
{
    /**
     * @var object[]
     */
    private array $data = [];

    public function setPart(string $key, object $value)
    {
        $this->data[$key] = $value;
    }
}

Parts/Truck.php

1
2
3
4
5
6
7
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder\Parts;

class Truck extends Vehicle
{
}

Parts/Car.php

1
2
3
4
5
6
7
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder\Parts;

class Car extends Vehicle
{
}

Parts/Engine.php

1
2
3
4
5
6
7
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder\Parts;

class Engine
{
}

Parts/Wheel.php

1
2
3
4
5
6
7
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder\Parts;

class Wheel
{
}

Parts/Door.php

1
2
3
4
5
6
7
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder\Parts;

class Door
{
}

测试

Tests/DirectorTest.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<?php declare(strict_types = 1);

namespace DesignPatterns\Creational\Builder\Tests;

use DesignPatterns\Creational\Builder\Parts\Car;
use DesignPatterns\Creational\Builder\Parts\Truck;
use DesignPatterns\Creational\Builder\TruckBuilder;
use DesignPatterns\Creational\Builder\CarBuilder;
use DesignPatterns\Creational\Builder\Director;
use PHPUnit\Framework\TestCase;

class DirectorTest extends TestCase
{
    public function testCanBuildTruck()
    {
        $truckBuilder = new TruckBuilder();
        $newVehicle = (new Director())->build($truckBuilder);

        $this->assertInstanceOf(Truck::class, $newVehicle);
    }

    public function testCanBuildCar()
    {
        $carBuilder = new CarBuilder();
        $newVehicle = (new Director())->build($carBuilder);

        $this->assertInstanceOf(Car::class, $newVehicle);
    }
}
