实体-属性-值模式

实体-属性-值模式（EAV）的目标是用 PHP 实现 EAV 模型。

目的

实体-属性-值模型（EAV 模型），是一种描述实体的数据模型。在这种模型中，用于描述实体属性（特性、参数）的数量可能非常多，但实际应用于某个实体的数量却相对较少。

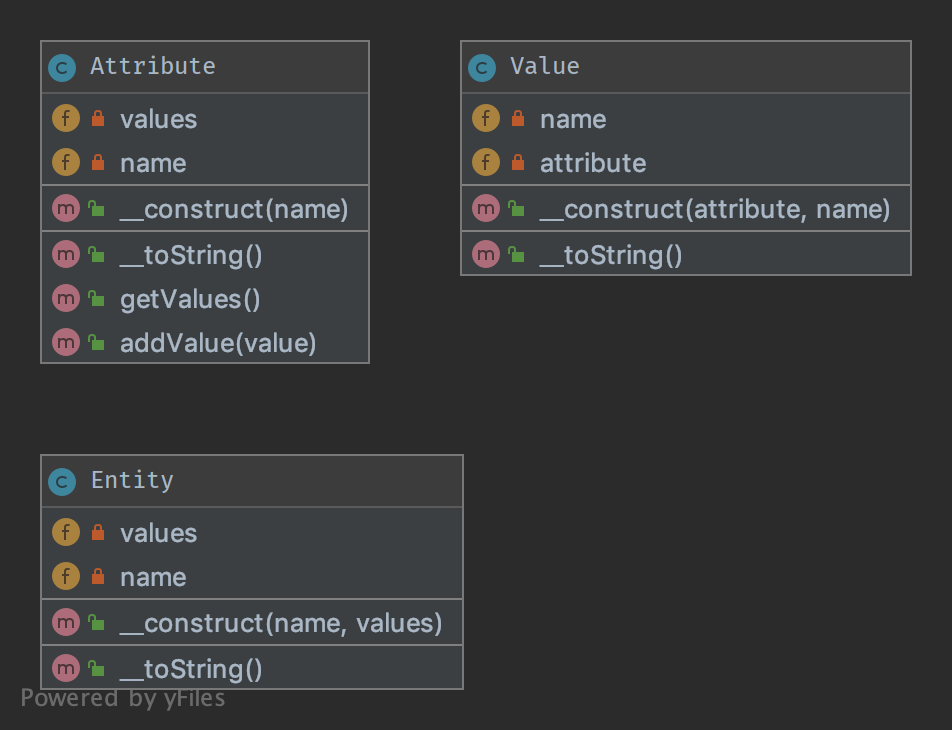

UML 类图

实体-属性-值模式类图

代码

Entity.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
<?php declare(strict_types = 1);

namespace DesignPatterns\Extend\EAV;

use SplObjectStorage;

class Entity
{
    /**
     * @var SplObjectStorage<Value,Value>
     */
    private $values;

    /**
     * @var string
     */
    private string $name;

    /**
     * @param string $name
     * @param Value[] $values
     */
    public function __construct(string $name, $values)
    {
        /** @var SplObjectStorage<Value,Value> values */
        $this->values = new SplObjectStorage();
        $this->name = $name;

        foreach ($values as $value) {
            $this->values->attach($value);
        }
    }

    public function __toString(): string
    {
        $text = [$this->name];

        foreach ($this->values as $value) {
            $text[] = (string) $value;
        }

        return join(', ', $text);
    }
}

Attribute.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
<?php declare(strict_types = 1);

namespace DesignPatterns\Extend\EAV;

use SplObjectStorage;

class Attribute
{
    private SplObjectStorage $values;
    private string $name;

    public function __construct(string $name)
    {
        $this->values = new SplObjectStorage();
        $this->name = $name;
    }

    public function addValue(Value $value)
    {
        $this->values->attach($value);
    }

    public function getValues(): SplObjectStorage
    {
        return $this->values;
    }

    public function __toString(): string
    {
        return $this->name;
    }
}

Value.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
<?php declare(strict_types = 1);

namespace DesignPatterns\Extend\EAV;

class Value
{
    private Attribute $attribute;
    private string $name;

    public function __construct(Attribute $attribute, string $name)
    {
        $this->name = $name;
        $this->attribute = $attribute;

        $attribute->addValue($this);
    }

    public function __toString(): string
    {
        return sprintf('%s: %s', (string) $this->attribute, $this->name);
    }
}

测试

Tests/EAVTest.php

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
<?php declare(strict_types = 1);

namespace DesignPatterns\Extend\EAV\Tests;

use DesignPatterns\Extend\EAV\Attribute;
use DesignPatterns\Extend\EAV\Entity;
use DesignPatterns\Extend\EAV\Value;
use PHPUnit\Framework\TestCase;

class EAVTest extends TestCase
{
    public function testCanAddAttributeToEntity()
    {
        $colorAttribute = new Attribute('color');
        $colorSilver = new Value($colorAttribute, 'silver');
        $colorBlack = new Value($colorAttribute, 'black');

        $memoryAttribute = new Attribute('memory');
        $memory8Gb = new Value($memoryAttribute, '8GB');

        $entity = new Entity('MacBook Pro', [$colorSilver, $colorBlack, $memory8Gb]);

        $this->assertEquals('MacBook Pro, color: silver, color: black, memory: 8GB', (string) $entity);
    }
}
